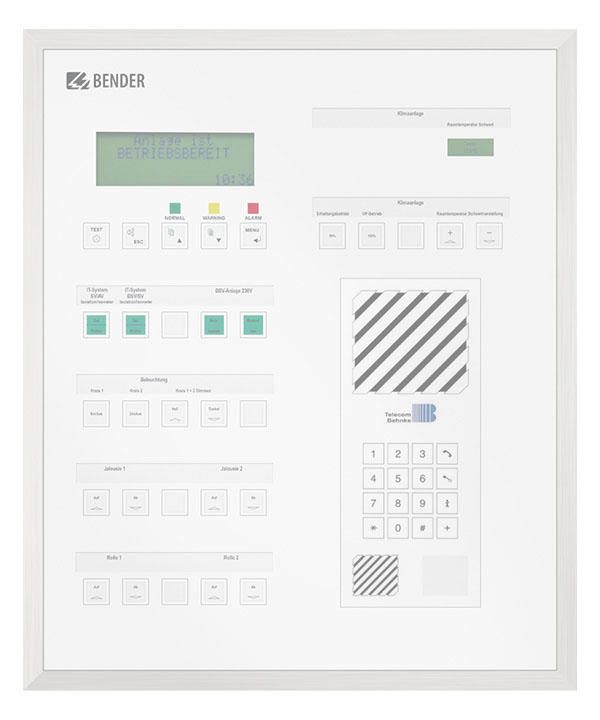

TM800
- This device series is in the discontinuation phase. -
Deliverable according to availability until 31.12.2023.
Your personal contact will be happy to assist you.
Do you already know our new product generation:
- This device series is in the discontinuation phase. -
Deliverable according to availability until 31.12.2023.
Your personal contact will be happy to assist you.
Do you already know our new product generation:
Features
- Display, control and operation of Bender monitoring systems and third-party systems
- Backlit clear LC text display (4 x 20 characters, 8 mm)
- Display of additional text supplies medical and technical personnel with specific information
- A set of LEDs, red, yellow and green, allowing messages to be indicated in an order of priority
- 80 predefined standard texts in 20 languages
- 1000 freely programmable message texts
- Easy parameter setting with PC (USB interface) or menu
- Memory with real-time clock to store 1000 alarm messages with date and time stamp
- Variable illuminated pushbutton modules allow freely configurable function assignment
- Closed foil surface allowing, easy integration of third-party systems, such as operating theatre table controls, medical gases, intercom systems, etc.
- Control of third-party systems by flexible I/O modules with galvanic separation
- Alarm LED at each input/output for fast diagnosis
- Functions can easily be expanded by adding I/O modules
- Clearly defined project structure due to an external and internal bus
- Non-reflecting, multicoloured foil.
- Optionally available with an antibacterial foil surface.
TM800 Variant(s)
Please contact us.
Optional Accessories for TM800
| Type | Designation | Art. No. |
|---|---|---|
| TMK-Set V4.xx | software | as Internet download |
| TMK-History V3.xx | software | as Internet download |
| USB driver software for MK2430, MK800 and TM800 | software | as Internet download |
Downloads for TM800
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Datasheets | TM800 | 698.3 KB | EN | 2020/11/30 11:14:4430.11.2020 11:14:44 | D00165 |
| Manuals | TM800 | 2.8 MB | EN | 2022/06/09 10:47:5909.06.2022 10:47:59 | D00165 |
| Software | TMK-Set (V4.25) | 5.8 MB | 2019/05/13 10:32:0513.05.2019 10:32:05 | ||
| Software | TMK-History | 2.6 MB | 2019/05/13 10:32:0513.05.2019 10:32:05 | ||
| Software | TMK USB Driver V6.5 Windows XP/2003/Vista(32/64)/7(32/64) | 3.3 MB | 2019/05/13 10:31:5913.05.2019 10:31:59 |
