RFID110-L1

RFID110-L1

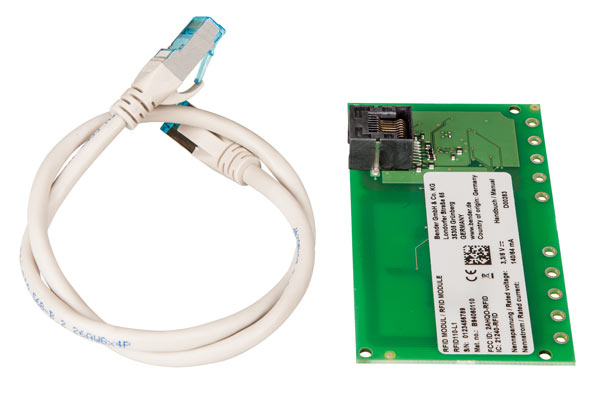

RFID module with integrated status LEDs

The RFID module is a separate PCB which facilitates user interaction with the charging system and is designed according to ISO14443A/MIFARE. It can be connected to the charge controller, the main component of a charging system, using a standard RJ45 cable.

Charging is initiated by holding a valid RFID card, which is registered to a backend system, close to the reader on the RFID module. Charging starts when the contactor in the charging system is switched on to provide power flow. In offline operation, the charge controller can optionally allow charging without authorization or it can authorize users based on RFID and a local white list of authorized RFID cards.



Suitable accessories for Charge Controller:

  • Aplicaciones
  • Información de pedido
  • Descargas
  • For use in combination with charge controllers used in electric vehicle charging stations, wall boxes and street light charging points



Variantes de RFID110-L1


TypeArt. No.
RFID110-L1(RJ45 cable (length 500 mm) included)B94060110
