ISOMETER® iso175

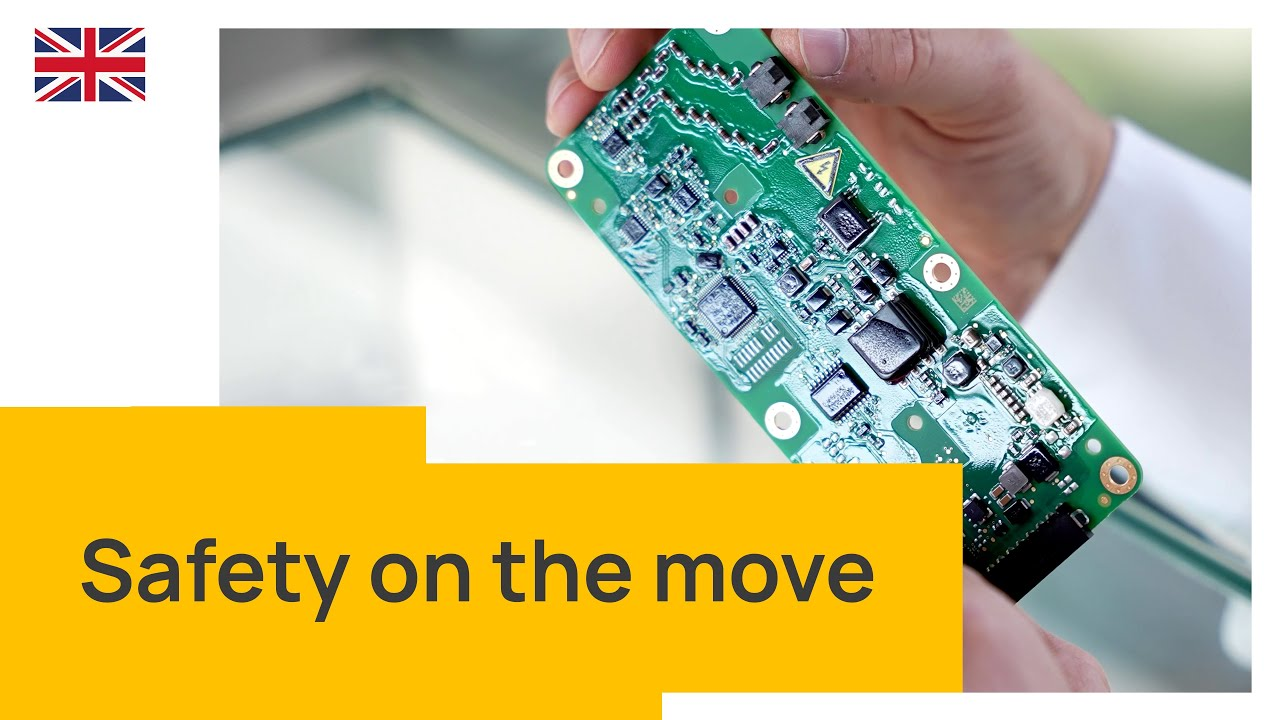

The ISOMETER® iso175 product line, is an insulation monitoring device for unearthed drive systems in hybrid and electric vehicles.
It has an active, patented measuring method for continuous monitoring of the insulation resistance in a high-voltage system. Depending on the variant, the device communicates with its system environment using different CAN protocols (standard Bender, SAEJ1939).
The ISOMETER® iso175 product line, is an insulation monitoring device for unearthed drive systems in hybrid and electric vehicles.
It has an active, patented measuring method for continuous monitoring of the insulation resistance in a high-voltage system. Depending on the variant, the device communicates with its system environment using different CAN protocols (standard Bender, SAEJ1939).
Características
- Suitable for 12 V and 24 V DC systems (supply voltage)
- Insulation monitoring of DC insulation faults for unearthed systems (IT systems) DC 0…1000 V
- Continuous insulation resistance measurement RF_corrected = 0…35 MΩ (RF_ original = 0…50 MΩ)
- Response time ≤ 30 s for insulation resistances ≤ 500 Ω/Volt and system leakage capacitances ≤ 2μF
- Insulation measurement for system leakage capacitances up to 10 μF can be configured by setting parameters in the high capacitance (“High Capacity“) profile.
- Insulation measurement also when the vehicle's HV electric system is not energised
- Intetrated self diagnosis (online self test)
- HV connection monitoring (offline self test)
- Continuous monitoring of the earth connection
- Undervoltage detection
- Earth connection can be disconnected
- Interfaces:
- Digital output for device error message (OKHS)
- As an alternative
- HS-CAN interface with the following protocols
- Bender CAN
- CAN-SAE J1939
- HS-CAN interface with the following protocols
- All outputs short-circuit proof
- Load-dump protection up to 58 V
High voltage disconnection function
Aplicaciones
- For unearthed drive systems (IT networks) in road vehicles, such as fuel cell, pure electric or hybrid vehicles
Long-lasting Safety for E-Mobility in Public Transport
In modern electric buses, reliability, safety, and service life are critical. The ISOMETER® iso175 from Bender is specifically designed for use in electric commercial vehicles – and reliably supports your e-bus over a service life of more than one million kilometers. With a mean time between failures (MTBF) exceeding 139,000 hours in accordance with EN/IEC 61709, it continuously monitors high-voltage systems – even under demanding conditions such as continuous operation, vibration, and elevated temperatures.
The result: reliable insulation monitoring – for the entire lifetime of a city bus. ** A typical city bus covers around 1,000,000 kilometers over its lifetime. At an average urban driving speed of 25 km/h, this translates to approximately 40,000 hours of operation – equivalent to about 12–15 years of daily service.
ISOMETER® iso175 Variante(s)
Standard variants
| Type | Steckverbinder- Connector type (connection) | Interfaces | Standardconfiguration | Earth disconnector | Art. No. |
|---|---|---|---|---|---|
| iso175C-32-SS | TYCO1 | HS-CAN SAE J1939 | Baud rate: 500 kBaud Response value: 100 kΩ (Error), 500 kΩ (Warning) | ✓ | B91068201 |
| iso175C-42-SS | Samtec/Molex2 | HS-CAN SAE J1939 | Baud rate: 500 kBaud Response value: 100 kΩ (Error), 500 kΩ (Warning) | ✓ | B91068202 |
| iso175C-32-SB | TYCO1 | HS-CAN Bender | Baud rate: 500 kBaud Response value: 100 kΩ (Error), 500 kΩ (Warning) | ✓ | B91068203 |
| iso175C-42-SB | Samtec/Molex2 | HS-CAN Bender | Baud rate: 500 kBaud Response value: 100 kΩ (Error), 500 kΩ (Warning) | ✓ | B91068204 |
1 HV+ / HV- connections
| 2 HV+ / HV- connections
|
Cable recommendation for proper functioning of the offline self test: AlphaWire (Art. No. 5875)
Customer configuration*
| Type | Connector type (connection) | Interfaces | Customerconfiguration | Art. No. |
|---|---|---|---|---|
| See Standard variants | TYCO (side) or Samtec/Molex (top) | HS-CAN (SAE J1939 or Bender) | According to customer specifications | B91068200 |
* The list for customer configuration can be found in the Downloads area.
Accesorios opcionales para ISOMETER® iso175
| Description | Suitable for type | Art. No. |
|---|---|---|
| IR155 / iso175 fastening kit | All | B91068500 |
| IR155 / iso175 connection kit (TYCO) | iso175X-32-XX | B91068501 |
| IR155 /iso175 connection kit (Samtec/Molex) | iso175X-42-XX | B91068502 |
Descargas para ISOMETER® iso175
| Nombre | Tipo | Tamaño | Idioma | Sello de tiempo | D-/B-Número |
|---|---|---|---|---|---|
| iso175 Wasserstoff | Flyer | 236.9 KB | DE | 2025/03/3131.03.2025 | |
| iso175 Hydrogen | Flyer | 226.7 KB | EN | 2025/03/3131.03.2025 | |
| Vehicle sensors. ISOMETER®iso175/IR155 | Folletos producto | 1.4 MB | 2024/05/2424.05.2024 | ||
| iso175 Kunden-Konfigurationsdatei | Configuración del dispositivo | 595.1 KB | DE | 2024/10/0101.10.2024 | D00415 |
| iso175 Customer configuration file | Configuración del dispositivo | 600.9 KB | EN | 2024/10/0101.10.2024 | D00415 |
| iso175 | Flyer | 362.4 KB | 2024/01/2525.01.2024 | D00415 | |
| iso175 | Flyer | 362.3 KB | FR | 2024/01/2525.01.2024 | D00415 |
| iso175 - Standard CAN Specification | Nota de aplicación | 202.0 KB | 2023/10/3131.10.2023 | D00415 | |
| iso175 - SAE J1939 Specification | Nota de aplicación | 211.4 KB | 2023/10/3131.10.2023 | D00415 | |
| We are your eMobility partner! | Flyer | 262.3 KB | 2023/11/2929.11.2023 | ||
| iso175 | Manuales | 4.4 MB | DE | 2024/08/1313.08.2024 | D00415 |
| iso175 | Manuales | 4.5 MB | EN | 2024/08/1313.08.2024 | D00415 |
| iso175 | Guías rápida | 412.0 KB | DE | 2024/08/1313.08.2024 | D00415 |
| iso175 | Guías rápida | 412.0 KB | EN | 2024/08/1313.08.2024 | D00415 |
| iso175 | Datos técnicos | 4.5 MB | DE | 2024/08/1313.08.2024 | D00415 |
| iso175 | Datos técnicos | 4.6 MB | EN | 2024/08/1313.08.2024 | D00415 |
