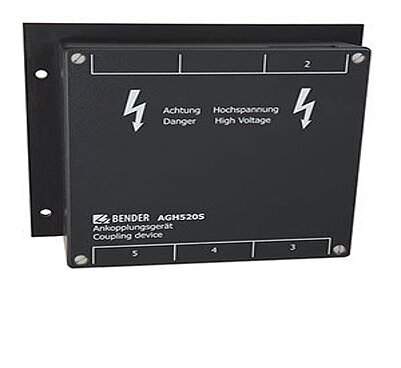

AGH520S
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For medium-voltage applications up to AC 7.2 kV
The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® iso685 series to (3)AC 0…7200 V, 50…400 Hz. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For medium-voltage applications up to AC 7.2 kV
The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® iso685 series to (3)AC 0…7200 V, 50…400 Hz. The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.
AGH520S Variant(s)
| Type | Nominal system voltage Un | Art. No. |
|---|---|---|
| AGH520S | 3(N)AC 0…7200 V | B913033 |
Downloads for AGH520S
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| Declarations of Conformity | UKCA - AGH | 122.7 KB | 2023/06/12 05:31:5712.06.2023 05:31:57 | ||
| CE Declarations of Conformity | AGH | 145.5 KB | 2023/06/12 05:32:5112.06.2023 05:32:51 | ||
| Manuals | AGH520S | 1.6 MB | EN | 2022/12/14 10:30:4014.12.2022 10:30:40 | D00073 |
| Datasheets | AGH520S | 333.6 KB | EN | 2022/07/21 12:32:0721.07.2022 12:32:07 | D00073 |
